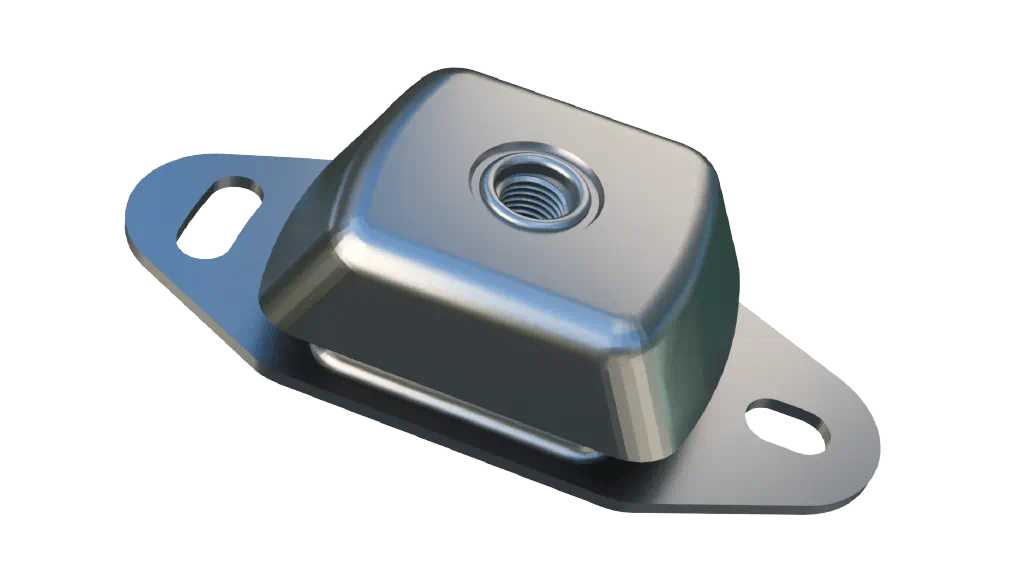

Cushyfloat Mount: Versatile Vibration Isolation Solution
Cushyfloat mountings are a versatile and reliable solution for minimising noise and vibration in a wide range of applications. Originally designed for the demanding marine environment, these compact and low-profile mounts are now used across various industries.
| Name | Width C | Length K | Mounting Holes | Hole Centre A | Shore Hardness | Thread Size 0d | Quantity | |
|---|---|---|---|---|---|---|---|---|
| 17-1600-00 | 60 | 120 | 2 | 100 | 45 | M12 | ||
| 17-1600-01 | 60 | 120 | 2 | 100 | 55 | M12 | ||
| 17-1600-02 | 60 | 120 | 2 | 100 | 65 | M12 | ||
| 17-1600-75 | 60 | 120 | 2 | 100 | 75 | M12 | ||
| 17-4944-60 | 75 | 183 | 2 | 140 | 60 | M16 | ||
| 17-4944-70 | 75 | 183 | 2 | 140 | 70 | M16 | ||
| 17-1609-00 | 75 | 183 | 2 | 140 | 45 | M16 | ||
| 17-1609-01 | 75 | 183 | 2 | 140 | 55 | M16 | ||
| 17-1609-02 | 75 | 183 | 2 | 140 | 65 | M16 | ||
| 17-1609-06 | 75 | 183 | 2 | 140 | 75 | M16 | ||
| 17-4944-50 | 75 | 183 | 2 | 140 | 50 | M16 | ||
| 17-2182-45 | 99 | 185 | 2 | 140 | 45 | M20 | ||
| 17-2182-65 | 99 | 185 | 2 | 140 | 65 | M20 | ||
| 17-2182-35 | 99 | 185 | 2 | 140 | 35 | M20 | ||
| 17-4726-40 | 111 | 228 | 2 | 182 | 40 | |||
| 17-4726-50 | 111 | 228 | 2 | 182 | 50 | |||
| 17-4726-60 | 111 | 2 | 182 | 60 | ||||
| 17-4792-40 | 111 | 228 | 2 | 182 | 40 | |||
| 17-4792-50 | 111 | 228 | 2 | 182 | 50 | |||
| 17-4792-60 | 111 | 228 | 2 | 182 | 60 | |||
| 17-1657-00 | 112.5 | 228 | 2 | 182 | 45 | M20 | ||
| 17-1657-01 | 112.5 | 228 | 2 | 182 | 55 | M20 | ||
| 17-1657-02 | 112.5 | 228 | 2 | 182 | 65 | M20 | ||
| 17-1657-03 | 112.5 | 228 | 2 | 182 | 75 | M20 | ||
| 17-1990-45 | 115 | 233 | 2 | 183 | 45 | M20 | ||
| 17-1990-60 | 115 | 233 | 2 | 183 | 60 | M20 | ||
| 17-1841-05 | 190 | 330 | 4 | 270 | 60 | M24 | ||
| 17-1841-07 | 190 | 330 | 4 | 270 | 40 | M24 | ||
| 17-1841-04 | 190 | 330 | 4 | 270 | 50 | M24 | ||
| 17-1841-06 | 190 | 330 | 4 | 270 | 70 | M24 |
